Designed and built in-house
Laser-cut steel, bolted construction and our own fabrication workshop, so every part fits and can be replaced.
DEPL designs, fabricates and installs pellet mills, hammer mills, mixers, coolers, elevators and fully automatic feed plants for poultry and cattle feed. One maker for the whole line, from raw material intake to bagging.
Laser-cut steel, bolted construction and our own fabrication workshop, so every part fits and can be replaced.
Every DEPL Brand machine carries a two-year warranty from the date of installation.
Our service crews attend breakdowns anywhere in Sri Lanka, day or night.
You approve a layout drawing in top view and side view before we start fabrication.
Dies, rollers, hammers and screens are held in Sri Lanka, so your plant does not wait for imports.
VFD motor control, solar and generator integration, and dust collection designed into the line.
Buy a single machine to upgrade your plant, or let us supply a complete line where every part is designed to work together. Raw grain goes in at one end and finished pellet feed comes out at the other, and the whole line runs from one control panel.
Raw grain goes in at one end and finished pellet feed comes out at the other. Every machine on this line is designed and built by DEPL, and the whole line runs from one control panel.
See our feed lines running and our 3D process animations on YouTube, Facebook and TikTok.
These are systems DEPL has designed for Sri Lankan feed mills. Each one can be added to a new line or fitted to an existing mill.

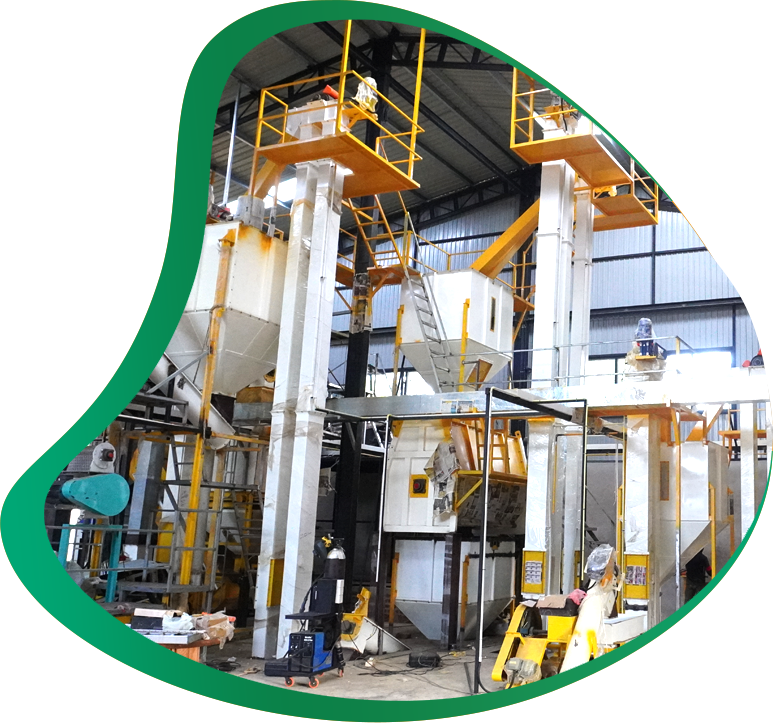

Automated raw material intake, two hammer mills and two pellet lines. Designed for 30 t/h mash and 40 t/h pellet feed, with 200 t finished feed storage and bulk truck loading.
Each stock tank feeds its own scale tank through a HIGH (fast) and a LOW (fine) screw feeder. The HIGH feeder stops just before the set weight and the LOW feeder tops up, so every batch is accurate.
The operator selects maize, soya, poonac or rice on the panel and the VFD rotary feeder runs at the right speed for it. Automatic doors fill the correct stock tank and level sensors stop the feed when it is full.
Oil is weighed in its own scale tank through pneumatic high and low valves, then pumped into the mixer. The supply tank refills itself at low level.
Powder chemicals and premix are weighed on a separate scale and added to the batch, keeping micro-ingredients exact.
Cooler exhaust passes through cyclones, a bag filter dust room and a wet scrubber before the chimney. Scrubber water is treated and reused.
Grid power, solar and generator are combined section by section with automatic changeover. The generator runs only to cover a shortfall, which cuts fuel cost without batteries or a grid connection.
Operators log motor amps, running hours and daily production on their phones. The app flags fault and overload readings early, so problems are fixed before a breakdown.
Four-chamber box tank with a V-bottom and a full-length screw driven by the truck's PTO hydraulic motor. It unloads straight into the farm's intake hopper.
Buy a single machine to upgrade your plant, or let us supply a complete line where every part is designed to work together. Ask us for the specification sheet of any model.

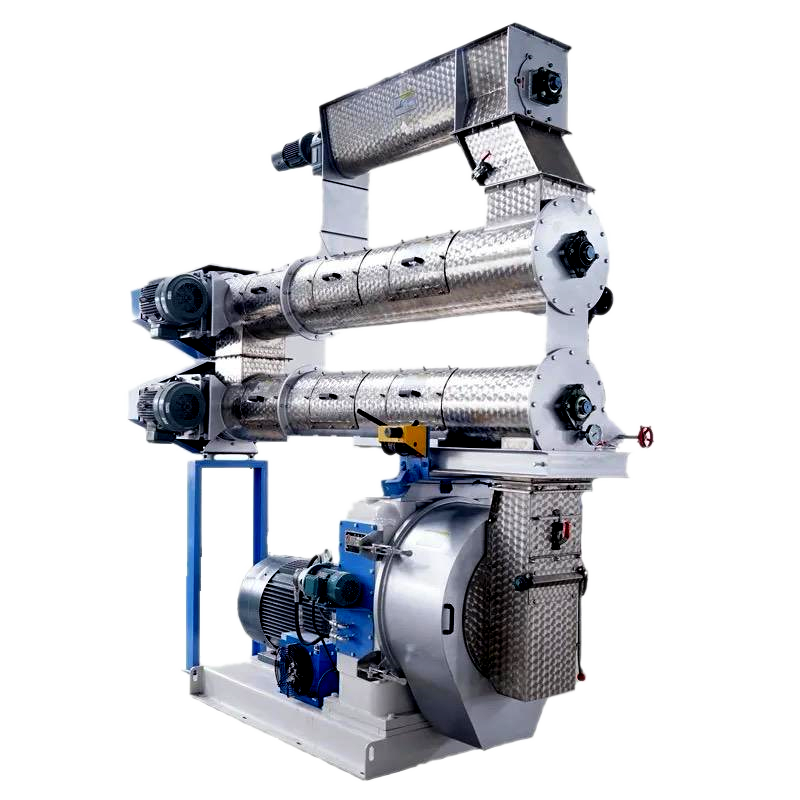

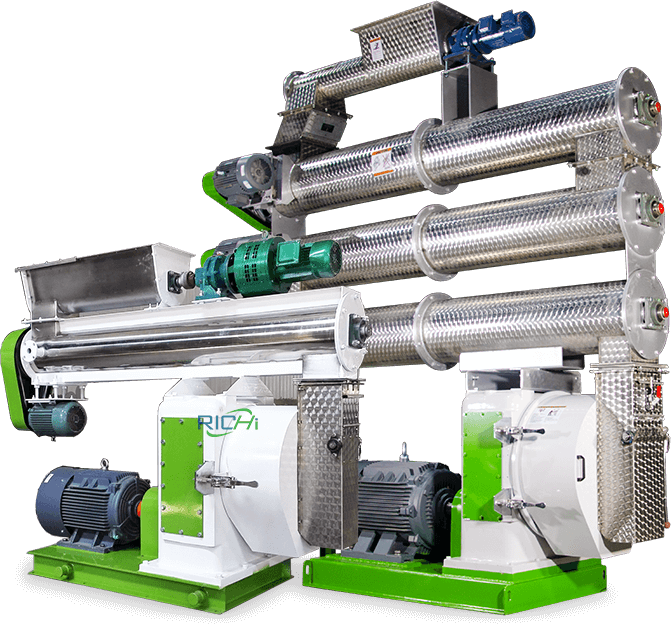

2β30 t/hRing-die pellet mills for poultry and cattle feed, with conditioner and feeder.
Request specifications
2β15 t/hGrinds maize, soybean meal and other raw materials, fed by a VFD-controlled rotary feeder.
Request specifications
1β30 t/hSingle and double shaft paddle mixers for fast, even batch mixing, with liquid and oil dosing options.
Request specifications
2β30 t/hCools and dries hot pellets straight from the pellet mill, with cyclone dust collection available.
Request specifications
2β30 t/hBreaks pellets into crumbles for broiler starter feed, with hand-wheel roll gap adjustment.
Request specifications
Bolted bucket elevators with inspection doors and boot clean-out, sized to the tonnage of your line.
Request specifications
U-trough and round screw conveyors, screw feeders and chain conveyors for intake and transfer.
Request specifications
Rotary sifters, raw material cleaners and drum magnets to remove stones, strings and metal before grinding.
Request specifications
Bolted stock tanks, weighing scale tanks and batching systems with level sensors and jack gates.
Request specifications
Dies, rollers, hammers, screens and bearings, kept in stock in Sri Lanka for quick replacement.
Ask for a partThe same workshop that builds our feed lines designs and builds fertilizer production plants, from compost lines to NPK granulation.

We start from your required tonnage per hour and your building. You get a layout drawing in top view and side view before fabrication begins, so you can see exactly how the line will stand on your site.

Every project starts with a numbered line drawing in top view and side view, and ends with a factory-tested line on site.
Two raw material lines with 5 + 5 stock tanks of 5 t, HIGH/LOW feeders into scale tanks, hammer mills with bypass valves, oil and chemical dosing, double paddle mixer, bagging and bulk loading.
Line 1 raw material batching with sifter, stock and scale tanks and chemical feeder. Line 2 for rice and wheat milling and batching.
Machinery and upgrades for an existing feed mill, including sifter input screws fitted to the old mill.
We work with feed producers abroad by WhatsApp, email and video call. Quotations can be given in US dollars.
